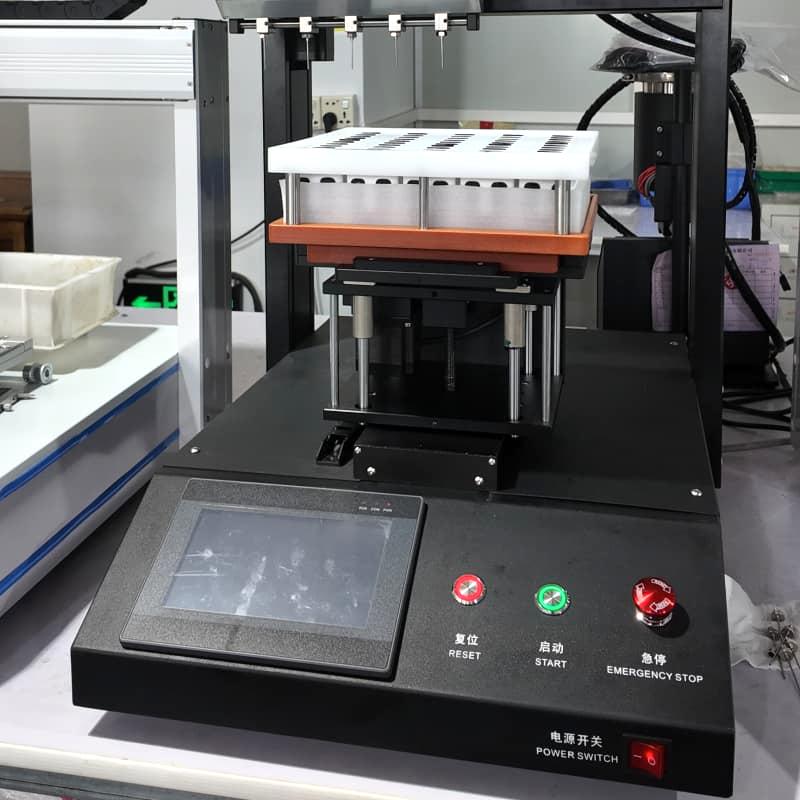

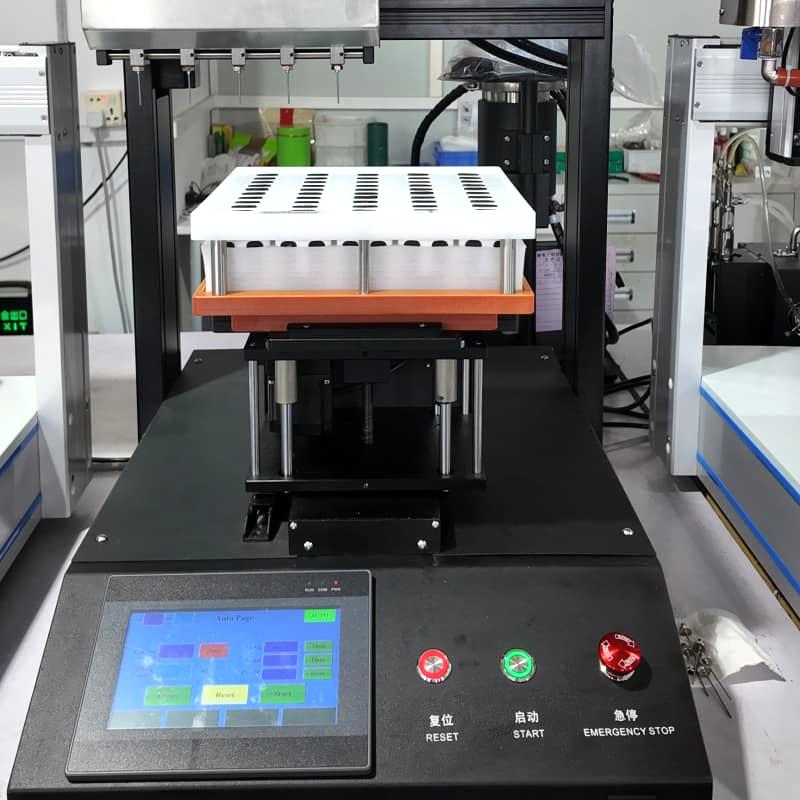

CBD Automatic Five-head Filling Machine ZW-350JY

Details

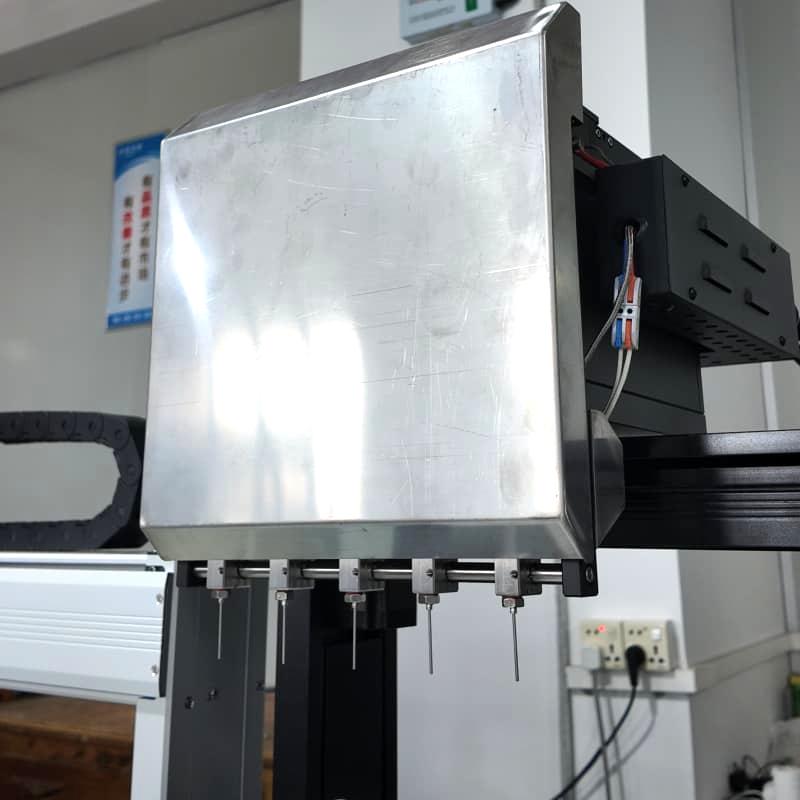

ZW-350JY is a high-efficiency automatic oiling machine. This model is equipped with 5 oiling heads, which greatly improves the oiling efficiency. The oiling head is directly connected to the oil barrel, with a short oil circuit and high stability.

Product Functions and Features

1. High efficiency and good stability.

2. The liquid is heated evenly by aluminum parts. Three temperature sensors detect the temperature, and each part of the heated liquid can be accurately controlled.

3. The path from the oil barrel to the oil outlet needle is short, and there is little residue after injection, and no waste.

4. The setting and operation page is simple and easy to use.

The core value of the five-head automatic filling machine lies in its ability to achieve multi-station parallel operations, meeting the requirements of high speed, high precision, and compatibility of multiple product categories in large-scale production. It is particularly suitable for liquid/gel quantitative packaging in industries such as food, cosmetics, and chemicals.

Equipment Parameters

Brand	Zhuozhi Intelligence	Name	Automatic Oil Filling Machine (Five Heads)
Model	ZW-350JY	Automation Degree	Automatic
Processing Customization	Support Customization	Oil Tank Capacity	1.5L
Number of Filling Heads	5	Production Capacity	50-100 pcs/minute
Single Filling Volume	0.2-3ml/0.2-5ml	Filling Accuracy	0.01
Applicable Bottle Diameter	Above 2mm	Applicable Bottle Height	5-100mm
Working Principle	Injection Pump	Filling Principle	Negative Pressure
Control Mode	Touch Screen + PLC + Self-Programming	Driving Mode	Motor + Ball Screw
Power Supply (Optional)	AC100V-120V; AC200V-240V	Power	800W
Applicable Objects	CBD/THC/Cannabis Oil/Other Liquids	Applicable Industries	CBD/THC/Vaping/Toiletries
Screen Size	4.3 inches	Packaging Type	Export Wooden Case
Overall Dimensions/Net Weight	520640650mm/About 152kg	Including Wooden Case Overall Dimensions (LWH) (mm)/Weight	680560800mm/About 178kg
After-sales Service	One-year Warranty	Whether it is a Cross-border Export Exclusive Supply	Yes
