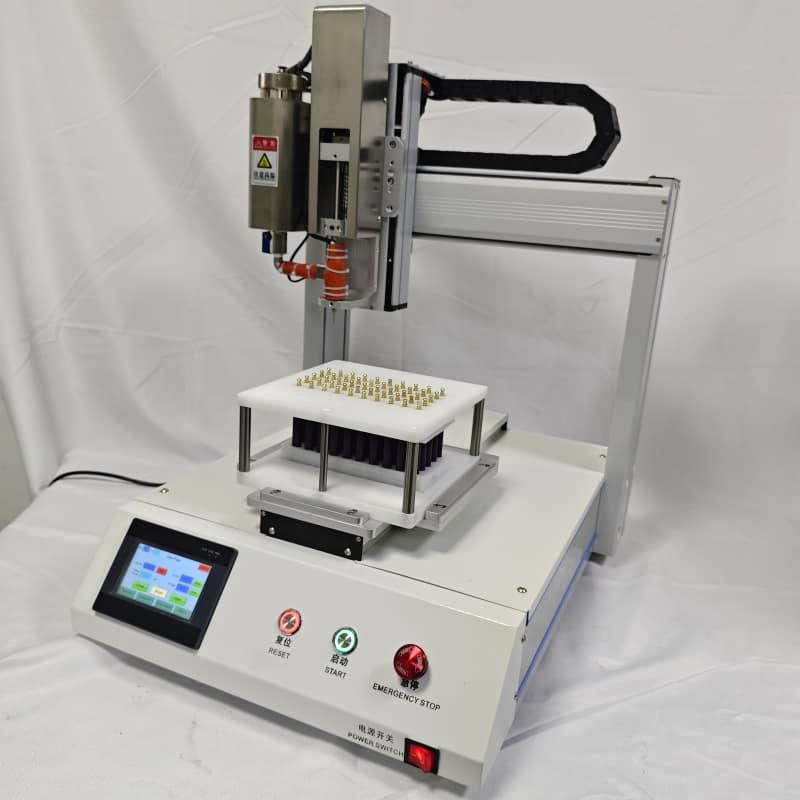

Product Overview
The Automatic Oil Filling Machine uses a three-axis platform to achieve automatic oil filling through touch screen + PLC + self-programmed precise control. Different from the common automatic machinery that requires a certain technical threshold to operate, this model has made a lot of optimizations in human-computer interaction, and the operation interface is simple and easy to understand. Novices can operate directly after simple training. This model is the first model designed by our factory in the CBD industry. Years of technical accumulation and optimization have made this model impeccable in terms of stability and efficiency. It is the best-selling automatic oil filling equipment in the semi-automatic powder filling machine industry.
Product Functions and Features
1. Automated production, high efficiency, saving a lot of labor costs.
2. Simple operation, easy to learn and use, quick to get started, no threshold for use.
3. High oil injection accuracy, stable and durable, easy to clean and maintain.
4. Small size, light weight, no air pump, no noise.
Equipment Parameters
|
Brand |
Zhuozhi Intelligence |
Name |
Automatic Oil Filling Machine (Single Head) |
|
Model |
ZW-221 |
Automation Degree |
Automatic |
|
Processing Customization |
Support Customization |
Oil Tank Capacity |
300ml/500ml |
|
Number of Filling Heads |
1 |
Production Capacity |
10-30 pcs/minute |
|
Filling Volume |
0.2-3ml/0.2-5ml |
Filling Accuracy |
0.01 |
|
Applicable Bottle Diameter |
Within 2mm |
Applicable Bottle Height |
5-100mm |
|
Working Principle |
Injection Pump |
Filling Principle |
Negative Pressure |
|
Control Mode |
Touch Screen + PLC + Self-Programming |
Driving Mode |
Motor + Ball Screw |
|
Power Supply (Optional) |
AC100V-120V; AC200V-240V |
Power |
700W |
|
Applicable Objects |
CBD/THC/Cannabis Oil/Other Liquids |
Applicable Industries |
CBD/THC/Vaping/Toiletries |
|
Screen Size |
3.5 inches |
Export Wooden Case |
Yes |
|
Overall Dimensions/Net Weight |
520640650mm/About 146kg |
Including Wooden Case Overall Dimensions (LWH) (mm)/Weight |
570700795mm/About 168kg |
|
After-sales Service |
One-year Warranty |
Whether it is a Cross-border Export Exclusive Supply |
Yes |
Product details
